Product Information My-T-Mouse software provides on-screen keyboards, user programmable macro buttons, and many other innovative interface approaches to enhance operation within the Microsoft Windows Environment. "My-T-Mouse" is a Windows software program that provides a various utilities and functions, creating a powerful interface compatible with any pointing device (Mice, Trackballs, Touchscreens, GlidePads, Pens, Switches, Digitizers, etc.), while providing complete access and control over all computer functions. "My-T-Mouse" is IMG's original Onscreen Keyboard & programmable Macro utility for Windows. Introduced at Fall Comdex in 1993, it has evolved into hundreds of customized versions for specific applications ranging from Assistive Technology input tools to Automation to Warehouse & Enterprise Management tools... For Commercial Applications, check out the Commercial Products Home Page For Touchscreen manufacturers and integrators, the exact same software with the name My-T-Touch is preferred. For Light Pens, Pen Tablets and Slates, and Tablet PCs the exact same software with the name My-T-Pen is preferred. For Server/Terminal Server/Terminal Services, see My-T-Soft TS. For Handheld, Rugged, and Windows CE Terminal devices, see My-T-Soft CE. For Custom Keyboard Designing and Windows / Linux run-times, see Build-A-Board Keyboard Designer Tool. For Assistive Technology Enhancements, see OnScreen My-T-Mouse 1.78 includes over 200 international layouts with 3D Key display and infinite sizing! The Logon option allows the pointing device (Pen, Touchscreen, or other device) to logon to Windows and enables the evolution beyond the physical keyboard once and for all! The feature list includes all of the requested options found in the versions My-T-Touch and My-T-Pen, including the ability to re-map keys, Custom Logos, Supervisor / Operator modes, and hundreds of other options... New features in 1.78 Support for Windows 7 / Vista Version match to My-T-Soft, My-T-Pen, and My-T-Touch Workstation / Network Logon Options - both Windows 7 / Vista and XP/2000 Even more layouts, now over 200 on screen keyboards providing worldwide coverage Integrated support for Build-A-Board keyboard layouts New configurable location options for users - private or shared More Integrator options Developer Kit add-ons - options to integrate DLLs with My-T-Mouse, Logging capabilities Configuration saving options - after move, after change, at close, at end of session Numerous customer requested enhancements & updates My-T-Mouse is a Windows software program that provides a powerful interface through a ANY pointing device by providing on screen keyboards, user programmable macros, and complete control over all computer functions via the pointing device interface. By allowing systems to operate without the need for a physical keyboard, external templates, membranes, or buttons, My-T-Mouse can provide the finishing touch on sealed systems that only require a pointing device interface for user input. My-T-Mouse uses a concept found in fighter planes, helicopters, tanks, and for automobiles. That concept is called "Heads Up Display" technology and its principal objective is to keep the users focus and concentration centered in one place. My-T-Mouse uses that concept to reduce the visual re-focusing and re-positioning, caused by the heads up and down motion of going from screen to keyboard to screen, and the resulting confusion it causes. Many users find they no longer need a physical keyboard or other input devices beyond the pointing device interface (Mouse / Trackball / Touchpad / Touchscreen / Light Pen / etc.)

Features

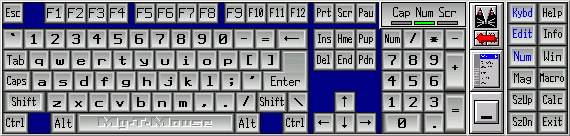

Over 200 "Heads-Up Display" Infinitely Sizeable Keyboards

ABCD Alphabetical, QWERTY, 3 DVORAK's, and over 200 International layouts [Chinese, Japanese, Korean, German, Spanish, French, Hebrew,
Russian (shown right in size 8), Greek, etc.] with Edit and Numeric panels.

• What on screen keyboard layouts are available?

Minimize Keystrokes, Mouse Clicks and Menu Selections

Store up to 2000 keystrokes/menu selections (or the applications macro scripts) on each button. Up to 15 buttons can be grouped on individual Panels, which auto-open when their assigned application becomes active.
Shown Left (far): My-T-Mouse with standard Macro panel open in size 9.
Shown Left (near): My-T-Mouse with Macro panel open in size 7 with customized color option.
Shown Right (near): My-T-Mouse with standard Windows panel open in size 9.
Shown Right (far): My-T-Mouse with Windows panel open in size 7 with customized color option

Assignable Functions for Pointing Device Buttons

Assign any of 63 different functions to each button. Popular keys such as Shift, Esc, Enter, Ins, Ctrl, etc, can be assigned at anytime

Pop-Up Calculator with pop-up Tape and Send Function

A standard 4 function calculator with memory, that always stays on top, has its own pop-up Tape and Send function that places the display information right into your current document or field (shown in size 9).

Built in Magnifier

If necessary, a built-in Magnifier panel can be displayed to show a magnified view of the current area (mouse cursor as center).

Developer friendly

Show & Hide keys, program keys in Key Options, Custom logo display, Operator mode, on-demand functionality. The Developer's Kit comes with all kinds of utilities, source code, sample code, and a wealth of information for integrating My-T-Mouse with your own application.

Feature List

• Seamless operation from Mouse, Trackball, Touchscreen, Pen, or any other pointing device

• Microsoft Windows 2000 / XP / Vista / 7 Compatible

• Workstation / Network Logon Options

• Developer Tool Kit and Extensions

• Developer examples of integrating into existing applications

• Supervisor / Operator Modes

• Show & Hide Keys

• Selectable Sizes

• Realistic 3D graphics

• Infinite Sizing

• Support for Build-A-Board layouts - completely customizable user interface

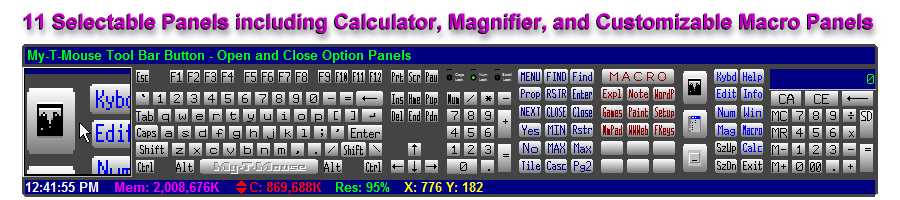

• 11 panels, individually selectable, or create your own with Build-A-Board

• Great for editing - Quick & Easy!

• Special Windows Short-cut Keyboard - Power Users Dream!

• 101 & 104 key layouts

• Multiple Keyboard Layouts with ABC Layout for Non-Typists

• International support - numerous keyboard layouts from around the world

• Create Macro Keys & Panels

• Specific Key & Key Combination Enable / Disable

• Attach Executable programs to Keys & Key Combos or Window Activation

• Includes the Calculator with Calculator Tape & Send Feature

• Time & Date Display

• Memory, Disk Space, Resources status Display

• Completely Configurable for all of your needs

• Built-In Magnifier

• Color-code Panels for easy identification

• On-line Quick Help for First-Time Users

• Minimizes to a Button for convenient access

• Once you use it, you won't want to live without it!

• Keyboard not required (Just Say No... to your Keyboard.)

• End-user and Developer Support

Specifications

On-Screen keyboard software written as standard Windows application

• Compatible with all properly written Windows applications
• Developed in C/C++ - written at same level as Windows operating system for maximum capabilities
• Accesses Windows API via standard interfaces/System DLLs - No frameworks or special environment required
• Support for all Windows variations since Windows 3.0, including Windows CE
• Field proven technology since 1993

Keyboard designed so pointing device can fully operate Windows

• Keyboard layouts as binary data files for minimal space requirements
• Fully emulates 101/104 physical keyboard
• 11 individually selectable panels, including Alpha keyboard, Edit, and Numeric keypad
• 12 base sizes, infinite larger sizes
• Over 200 US, international, and variation layouts
• Supports IMG's Build-A-Board Layouts

User, developer, and integrator command and control options

• Provides ability for user to operate without need for physical keyboard
• Operator mode for secure application integration
• Developer's Kit (SDK) for controlling and manipulating keyboard

Modular support options/capabilities

• Sounds
• Transparency
• Windows logon options
• External Support utilities (Developer's Kit)

Operational customization options

• Show/Hide keys to remove potentially undesirable keys/options (Alt, Control, Function keys, etc.)
• Key options to remap/modify key actions
• Macro panels for arbitrary/lengthy keyboard actions

Visual customization options

• Custom views/colors/key images
• Supports themes for visual integration
• Integrates with IMG's Build-A-Board for complete customization capabilities

Extensive feature list

• Unique and specialized features to address customer needs
• Detailed help, documented options, on-line knowledgebase
• Advanced Technical support, programming, and program level integration assistance available

Technical Information

Download

Click here to go to the Download page for My-T-Mouse On-screen Keyboard

Order

My-T-Mouse Suggested Retail Price is US $99.95.

• Windows 7 / Vista / XP / 2000
• For Older Versions, refer to Catalog
• Download My-T-Mouse
• Catalog #: 11001
•
  Just want to license electronically? Download and install the software, then click on "Purchase License Now" from the License Manager!
  Website only handles small quantity pricing - Please contact IMG Sales for Volume purchases and pricing.

OEM/VAR Customized Versions and Network / Site Licenses available.
